Air Washer

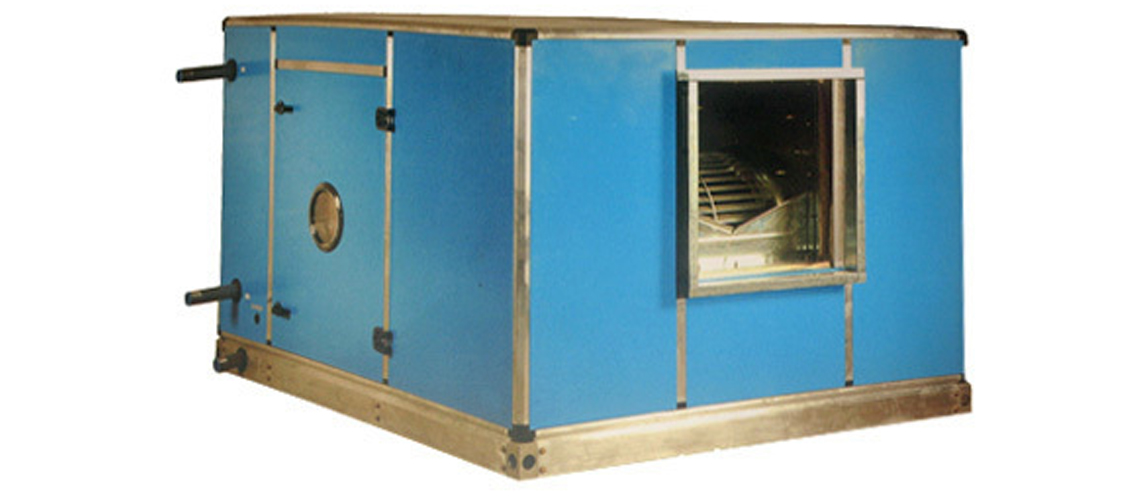

Air Washer Reftech Reftech Solutions® Air Washer

Air Washer offered by Reftech Solutions® provides quick sterilization support and helps in killing of bacteria and viruses present in the air. Further, these also meets the demands of removing of odour and improving oxygen quality. Some of its features includes: perfect air sterilizer, keeps the surrounding atmosphere fresh and healthy, supports the sterilization demands of clean rooms, It is available in different operating specifications, can also be developed as per OEM specifications provided by customers.

Reftech Solutions® air washer system evaporative cooler produces effective cooling by combining a natural process water evaporation with a simple reliable air moving system. Fresh outside air is pulled through moist pads, where it is cooled by evaporation and circulated through a house or building by a blower.

Reftech Solutions® are offering Air Washer which are widely used in food industry ,plastic industry, chemical industry etc.

Download Brochure

Prominent Features

  • 100% clean air
  • Robust Construction
  • High Quality components
  • Full ventilation exhausts odours, germs
  • Highly Durable
  • Negligible Maintenance
  • Guaranteed Performance
  • Timely Delivery

Single Skin vs Double Skin

Features Single Skin Double Skin
Corner Sheet Metal Cast Iron
16 G. G.I
PVC
24 G.I --PP Sheet Outside
24 G.I GI Inside
Insulation No Insulation PUF Insulation (CFC Free)
Base 100mm C Channel 100mm C Channel
Tank MS/SS MS/SS
Filter Frame G.I/ Aluminium G.I/ Aluminium
Vibration Isolator Cushy Foot Mpounting Cushy Foot Mounting
Fan Centrifugal Fan-forward
Curved/Backward Curved
Centrifugal Fan-forward
Curved/Backward Curved
Cooling Media Cellulose Pad Cellulose Pad
Air Discharge Horizontal/Vertical Horizontal/Vertical
Air Washer Placement Ceiling Suspended/ Foot Mounting Ceiling Suspended/ Foot Mounting

Specifications

Model C.F.M Motor Pump
RSA4 4000 2 HP 1/4 HP
RSA6 6000 3 HP "
RSA8 8000 5 HP "
RSA10 10000 5 HP "
RSA12 12000 7.5 HP "
RSA15 15000 7.5 HP 1/2 HP
RSA18 18000 10 HP "
RSA20 20000 10 HP "
RSA25 25000 12.5 HP "
RSA30 30000 15 HP "
RSA40 40000 20 HP 3/4 HP
RSA50 50000 25 HP "
