Cold Storage

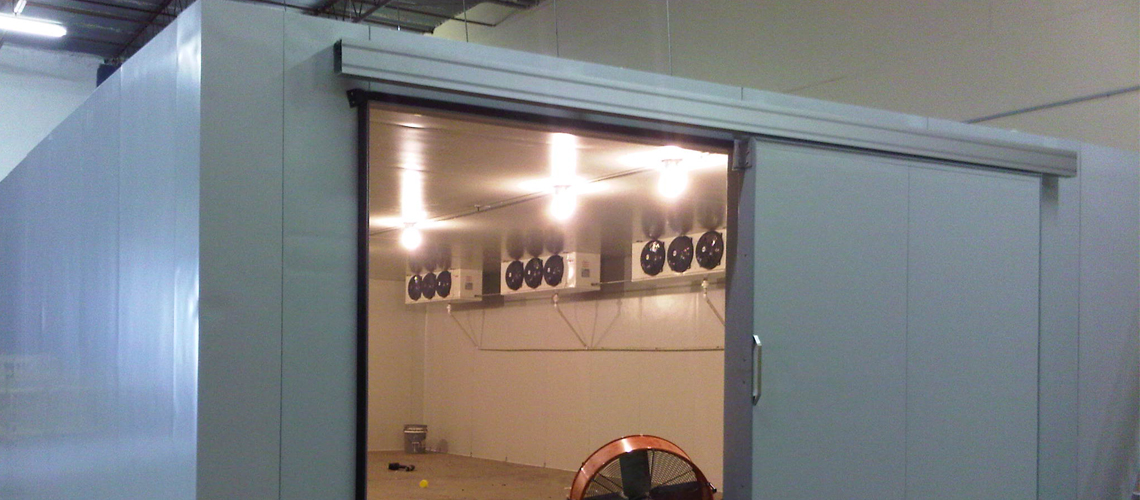

Cold Room Reftech Reftech Solutions® Cold Storage

Cold storage Rooms are standard preservation chambers built at site to desired dimensions and cooling specifications.

Reftech Solution®’s Cold Storage Rooms use world-class PUF Insulated Panels manufactured by Reftech Solutions at state-of-the-art facilities, and Refrigeration Units from Reftech Solution®'s facilities and from partners from across the globe, to offer you totally reliable cooling and preservation chambers specifically built for your needs.

There are number of insulation solution like Expandable Polystyrene, Glasswool, Mineralwool. These are open cell structure with air cell impregnated which allows moisture ingress and deposition. These have poor insulation property and lower thermal efficiency. Polyurethane Foam (PUF) is a closed cell material and most suitable for cold storage.

Reftech Solutions® are offering Cold Storage Room which are widely used in agriculture sector, food industry ,plastic industry, chemical industry and horticulture units.

Download Brochure

Prominent Features

  • Low Power Consumption
  • Robust Construction
  • High Quality components
  • Quick Installation
  • Highly Durable
  • Negligible Maintenance
  • Low Power Consumption
  • Reliable Delivery

Specifications

9643308453
Sr. No. Parameters Description
1 Average PUF Density 40 ± 2 Kg/ cu.mtr/ m³
2 PUF Blowing Agent 141B (CFC free)
3 Insulation Material Polyurethane foam
4 Temperature range +90°C to -60°C
5 Penal Type Discontinuous type with cam lock
6 M.O.C. Of Cam Locks Cam locks body material HIPS and male latch is made of nylon Glass field with GI sheet reinforcement. Cam-lock panel joints easy assembly and leakage resistant, panel-to-panel joints.
7 Type Of Panel Joints Tongue & Groove Joint with Cam lock and all side rubber gaskets
8 Corner Panel Available 12” X 12” X 134”(Maximum Length)
9 Length of wall & ceiling panel 2032 mm to 6160 mm 80” to 242.5” inch
10 Ceiling Suspension items with specs MS bolt with thermal breaking cap. 4 mm thickness X 80 X 80 mm Aluminum/MS washer plate for load distribution Anchor bolt (MS) hanging bolt with 40 mm washer 2.0 mm thickness Sealing to panel MS road Clamp with an insulated crown.
11 Closed cell content 90 to 95%
12 Vapour Permeability 5.5mg/PASM
13 Water Absorption Less than 2%
14 Fire Resistance FR Grade (Fire Resistance Grade)
15 Compressive Strength at 10% Deformation 0.21 N/ sq.mm (For PUF only)
16 Tensile Strength 0.58 N/ sq.mm (For PUF only)
17 Bending Strength 10mm (For PUF only)
18 Adhesive Strength (Foam to Sheet) 2.9 kg /sq.mtr
19 Dimension Stability Less than 2%
20 Panel Facing Availability With Rib or plain on Demand (Ribs are provided for more strength)
21 Wall & Ceiling Panel Facing Material Pre Painted Galvanized sheet, Thickness 0.55mm Plain Galvanized sheet, Thickness 0.55mm S.S.Sheet, Grade 316, 0.50mm, finish 2B, mates. S.S.Sheet, Grade 304, 0.50mm, finish 2B, mates.
22 Floor Panel Facing Material PUF panel with both side GIPP sheet of 0.55 mm with Plywood with 2.00mm thickness Aluminium Checkered Plate.
23 Fire Grade of Polyurethane foam B2
